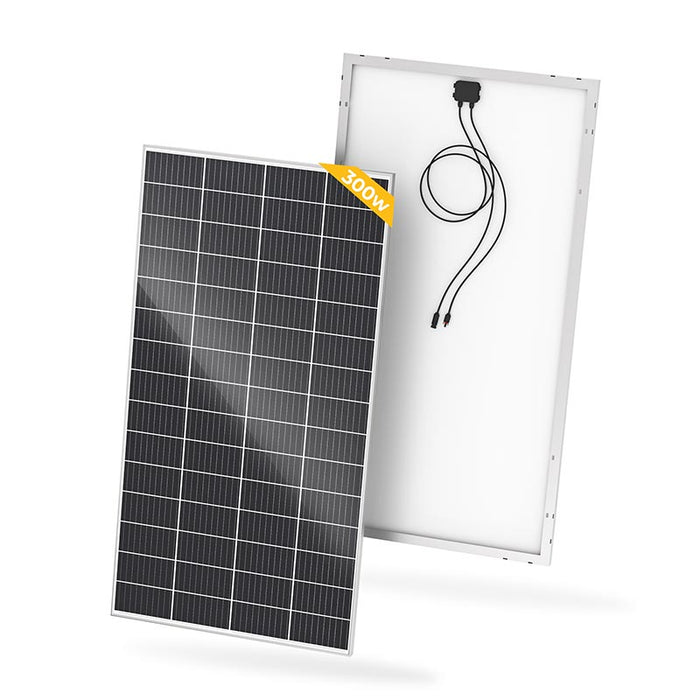

BougeRV 300W 12V 10BB Mono Solar Panel
BougeRV 300W 10BB solar panel is an exceptional choice for those looking for a high-performance solar panel. The 10BB cell design utilizes ten busbars to collect and transmit the electrical current generated by the solar cells, resulting in a significant boost in overall performance. This efficient solar panel is user-friendly, easy to install, and provides maximum output. The monocrystalline panels, 10BB cell design, and all-black design make this 300W 12v solar panel an exceptional choice for you.
10BB Cell Design
BougeRV 300W solar panel uses the high-level 10BB cell design which has a 23% highest conversion rate. Makes the solar panel have a longer service life. Increase the cell receiving surface, thinner ribbon reduces the covered area by 22%. Also, it can charge a 12V/24 battery or charge a 48V battery by wiring several solar panels in series.
Compact size, more power
Compared to three 100 watts solar panels, BougeRV 300 watts solar panels could save 11% space and reduce the loss of connection. Allows you to install more solar panels on the roof of the RV to expand a larger system to meet your daily needs.
Made of Class A Solar Cell
No visible defects and any micro cracks, BougeRV 400 watts solar panel passes the strict EL test. While other class B and C cells will have obvious cracks. The grade of the cell determines the actual output of the solar panel.
Durable and Reliable Package
Our new package offers ultimate protection with an extra protective strip on all sides, L-brackets on all corners, and an extra thick foam pad on the back. Trust that your shipment will arrive safely with our new package.
User Friendly & Easy Installation
IP67 Rated Waterproof Junction Box can isolate environmental particles and low-pressure water jets. Diodes are pre-installed in the junction box, with a pair of pre-attached 3ft Solar Cables. Pre-drilled holes on the back of the panel allow you to quickly install solar panels without using heavy tools.
SPECIFICATIONS
SKU
ISE162
Model
300W SOLAR PANEL
Maximum Power (W)
300±3% W
Product Dimension (IN)
64.6 x 34.6 x 1.4 inches
Open Circuit Voltage Voc (V)
20.8±3% V
Net Weight (kg / lb)
16.1kg / 35.6lb
Max Power Voltage Vmp (V)
17.5±3% V
Application Class
Class A
Max Power Current Imp (A)
17.14±3% A
Max Static Load (front)
2400 Pa
Short Circuit Current Isc (A)
18.85±3% A
Max Static Load (back)
2400pa
Solar Cells Efficiency
23%
Series Fuse Rating
20A
Warranty Description
12 years product warranty and 25-years power warranty
