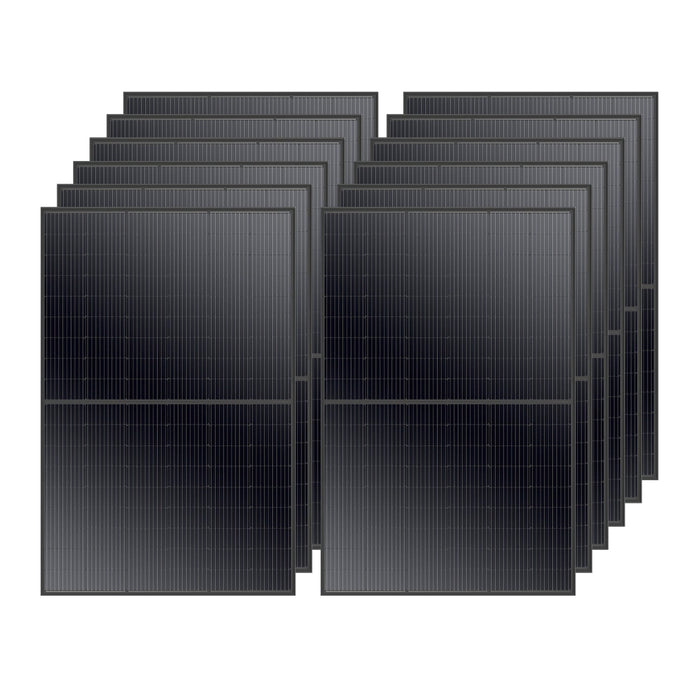

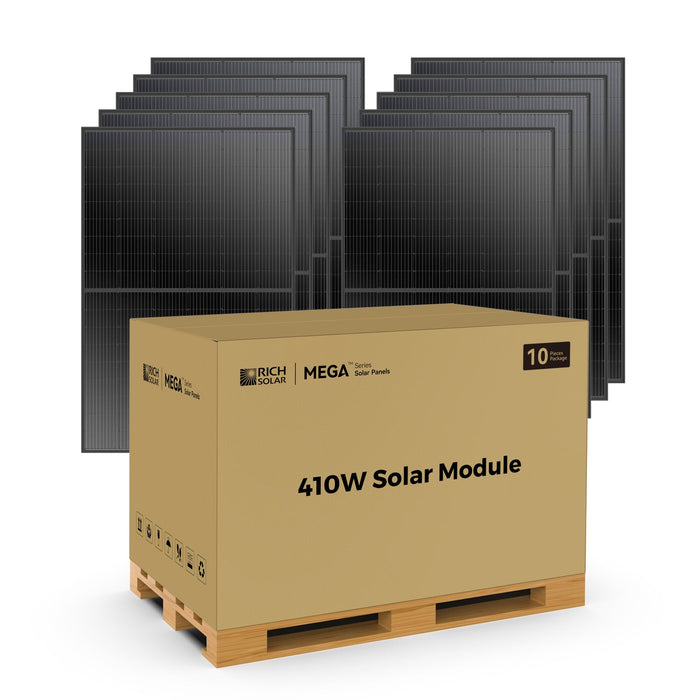

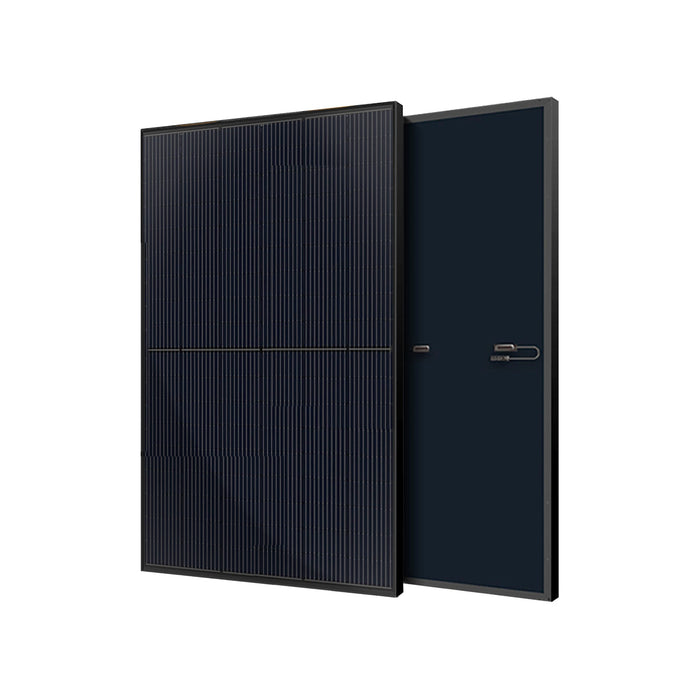

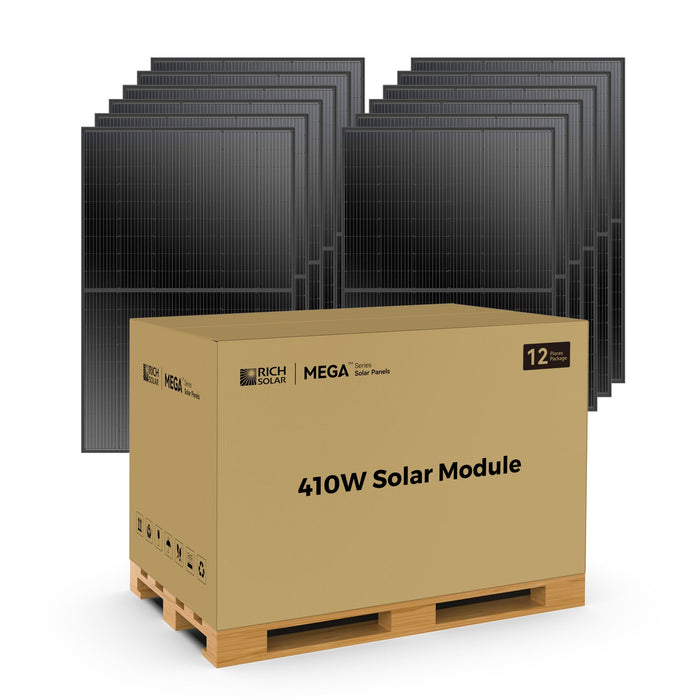

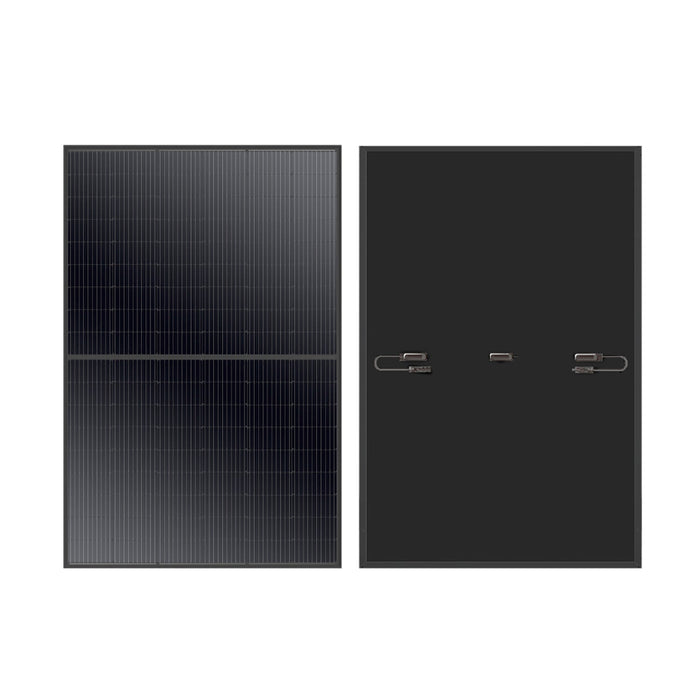

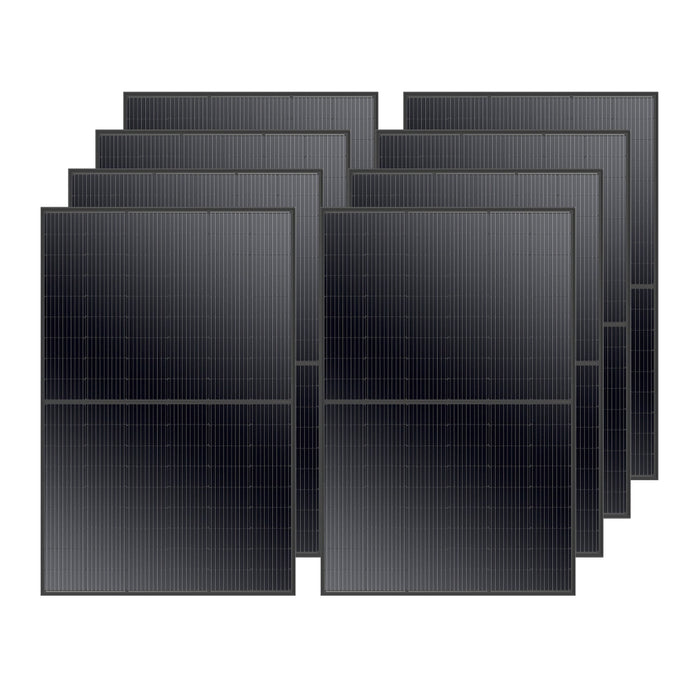

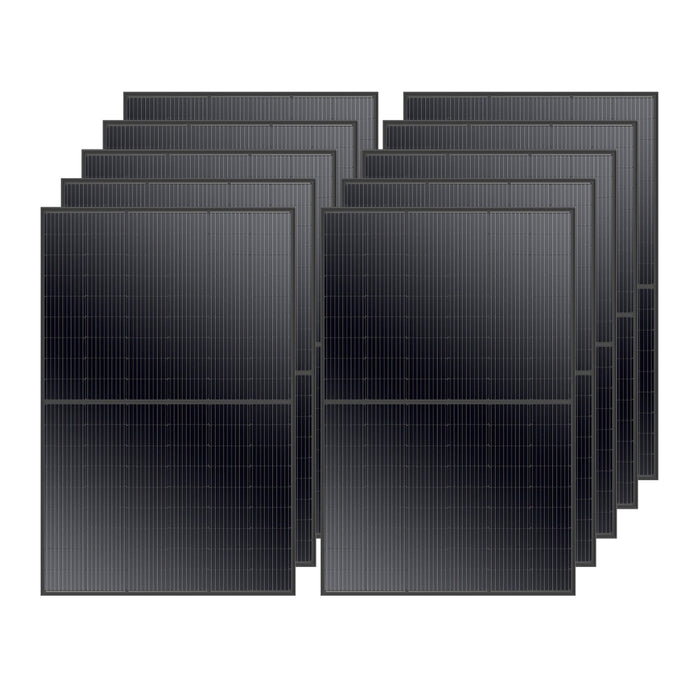

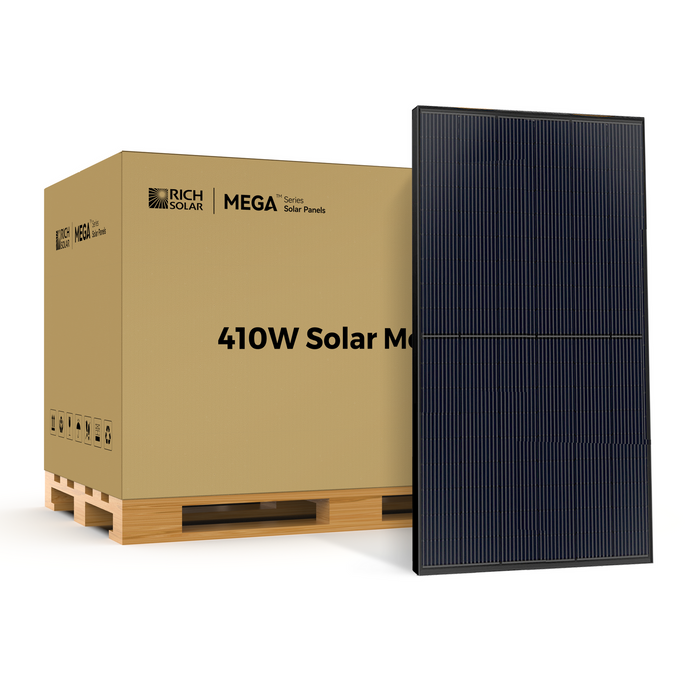

Rich Solar MEGA 410 Watt Monocrystalline Solar Panel + Choose Your Custom Package
PALLET SHIPPING ONLY!
For any other quantities, please contact our Sales Representative at (725) 777-5945 or email us at sales@mygeneratorplus.com.
Been looking for the off-grid solar system for you? This MEGA 410 Watt Solar Panel is one of the most best solar panels for grid-tie and off-grid system. Get this to start your solar adventure today!
Features
10 buss bar solar cell configuration
Mono PERC Technology
Lightweight anodized aluminum frame
High Transmission, AR (anti-reflective) Coated Tempered Glass
Plug and play junction box
Industry standard quick connect cables work in series or in parallel
Certified to withstand challenging environmental conditions
Excellent low light performance on cloudy days, mornings and evenings
Installation
Easy installation and handling for various applications (high-end off-grid and mobile applications)
Pre-drilled holes compatible with ground mounts, Z brackets, pole mounts and tilt mounts
Compatible with on-grid and off-grid inverters
Warranty
- 25 year limited power output
Specifications
ATTRIBUTE |
VALUE |
Maximum Power(Pmax) |
410W |
Maximum Power Voltage(Vmp |
31.3V |
Maximum Power Current(Imp) |
13.1A |
Open Circuit Voltage(Voc) |
37.5V
|
Short Circuit Current(Isc) |
13.8A |
Maximum System Voltage(Vmax) |
1500VDC |
Temperature Range |
-40°F ~ 185°F |
Max Series Fuse Rating |
25A |
Weight |
45.2 lb |
Dimensions |
67.9 x 44.6 x 1.2 in |
BUILT-IN COMPONENTS
- RICH SOLAR 410 watt monocrystalline solar panel
- Panel leads (pair): 2 feet each
- IP65 rated waterproof junction box
- IP67 rated waterproof solar connectors
- Bypass diodes built-in the junction box
|
