Sungold Power Hybrid Complete Solar Kit 11.4KW 48V Split Phase 51.2 KWH Lithium Battery 36 X 440 Watt Solar Panel SGH-11N5E

Hybrid Solar Kit 11.4KW 48V Split Phase – Reliable Power for Off-Grid, Hybrid, and Grid-Tied Systems

The SGH-11N5E Hybrid Solar Kit is a high-performance, all-in-one energy solution, designed to power homes, businesses, and off-grid setups with solar energy, battery backup, and seamless grid integration. With 15,840W of solar panels, dual 11.4kW hybrid inverters, and 51.2kWh of lithium battery storage, this system ensures energy independence, lower electricity bills, and uninterrupted power during outages.

Why Choose The SGH-11N5E Hybrid Solar Kit

Versatile Energy Management
Designed for off-grid, hybrid, or grid-tied applications, this system allows you to power your home with solar energy, feed excess power back to the grid, or store energy for backup power, giving you total control over your electricity usage.

High-Efficiency Solar Panels
The 36 x 440W monocrystalline solar panels maximize sunlight conversion, ensuring consistent and reliable energy production. These high-performance panels generate up to 15,840W of solar power, significantly reducing your reliance on the grid.

Powerful Hybrid Inverters
The dual 11.4kW 48V split-phase inverters provide smooth and efficient power conversion for a wide range of appliances. They support both 120V and 240V output, making them ideal for running household electronics, HVAC systems, well pumps, and more.

Long-Lasting Lithium Battery Storage
With 51.2kWh of LiFePO4 battery capacity, this system provides stable, long-term energy storage for uninterrupted power, even during extended outages. These batteries are maintenance-free, highly efficient, and designed for long lifespans, ensuring reliable energy for years to come.

Scalable & Expandable
This solar kit is designed for flexibility, allowing you to expand the system by adding more solar panels or batteries as needed. Whether for home, business, or off-grid applications, it adapts to your growing energy demands.

Seamless Backup & Grid Integration
The hybrid inverter enables automatic switchover to battery power during grid failures, ensuring continuous electricity supply. It also supports time-of-use energy management, allowing you to store solar power during the day and use it at night to maximize savings.

What's Included In The Complete SGH-11N5E Complete Solar Kit

Two 11.4kW 48V Split Phase Hybrid Solar Inverters for high-efficiency energy conversion

Thirty-six 440W Monocrystalline Solar Panels for maximum solar energy generation

Ten 100AH 51.2V LiFePO4 Batteries, delivering 51.2kWh of long-lasting energy storage

Two Enclosed Battery Cabinets for safe, organized storage

Four 50-foot Solar Extension Cables for secure inverter PV input connections

Two 2/0 AWG Battery Cables for efficient power transfer

Sungold Power 11.4KW Split Phase Hybrid Inverter 48V

11.4kW 48V Split Phase Hybrid Inverter

This high-quality inverter designed to convert solar energy into AC power, store energy in a battery for future use or feed it into the public grid. With 15kW solar input and 11.4kW continuous output, The system offers the flexibility to go off-grid, hybrid solar system, or sell excess energy back to the grid, providing a range of options to suit your energy needs.

High Solar Input: 3 MPPTs with up to 600V input each, supporting a total solar input of 15kW.

Scalable Power: connect up to 9 inverters in parallel for a 102.6kW system.

Versatile Functionality: Combines grid-tie, off-grid, and hybrid solar capabilities in one system.

Advanced AC Coupling: integration with grid-tie systems and smart load.

User-Friendly Interface: Monitor and adjust settings via an LCD display or mobile app.

Reliable Backup: Ensure continuous power to critical loads with battery backup when the grid fails.

Durable & Safe: IP65 rated, Wall-mounted design, optional 5 or 10-year warranty.

Certificate : UL 1741/CSA C22.2/UL 1699B UL 1741SB, IEEE 1547:2018, HECO SRD 2.0,CEC Listed.

Sungold Power 48V 100AH LIFEPO4 LITHIUM BATTERY

SG48100P Lithium Battery is built for energy storage system. The 48v Server Rack Battery provides well-designed and high-performance standard battery pack. The battery is compact,easy to install, free of maintenance and can be installed in parallel in the energy storage system to increase its capacity. lt is widely used in home applications, small commercial and industrial energy storage system and so on.

Character: The 51.2V 100AH LFP Battery is compact, well-designed, LCD, and cable/accessories ready for installation. ≥7000 cycles deep cycle & 10 years warranty, designed for up to 15-year life UL1973 UL9540A.

Intelligent BMS: Battery Management System of the 48v server rack battery can manage and monitor cells information including voltage, current and temperature, protects it from overcharge, deep discharge, overloading, overheating and short circuit, help to extend lifetime.

Flexible: Modular design, easy to expand, max 32 units in parallel capacity of 163.84kwh, suitable to residential and commercial applications and other energy storage system for increasing the self-consumption ratio.

Compatible: CAN/RS485/RS232 Communication Protocol Lithium Ion Battery can be compatible with most inverters in the market, such as Growatt, Deye, SunGoldPower, Luxpower, Victron energy, Schneider, Phocos, SMK and so on.

440W Mono Black PERC Solar Panel UL 61730

Off-Grid & On-Grid Solar Panel Solution & Hybrid System

This high efficiency PERC Solar panel works for both on-grid /off-grid solar/hybrid solar system, storing energy with battery, reducing power bills, or powering complete off-grid house.

High Efficiency PV Solar Panels

High efficiency monocrystalline PERC module, 182mono half-cells with an all-black design.

Water Proof

The solar junction box and solar connectors with an IP68 rating is completely protected from dust and will properly functional after Temporary immersion in water (up to 1m deep).

Snow and Wind Protection

Passed load test of 5400 Pa to withstand heavier snow load and 2400 Pa to withstand wind pressure.

The SGH-11N5E Hybrid Solar Kit is the ultimate energy solution, combining high-efficiency solar panels, powerful hybrid inverters, and long-lasting lithium batteries into a single reliable, expandable, and cost-saving system. Whether you want to cut electricity costs, achieve energy independence, or secure backup power, this kit delivers unmatched performance and flexibility.

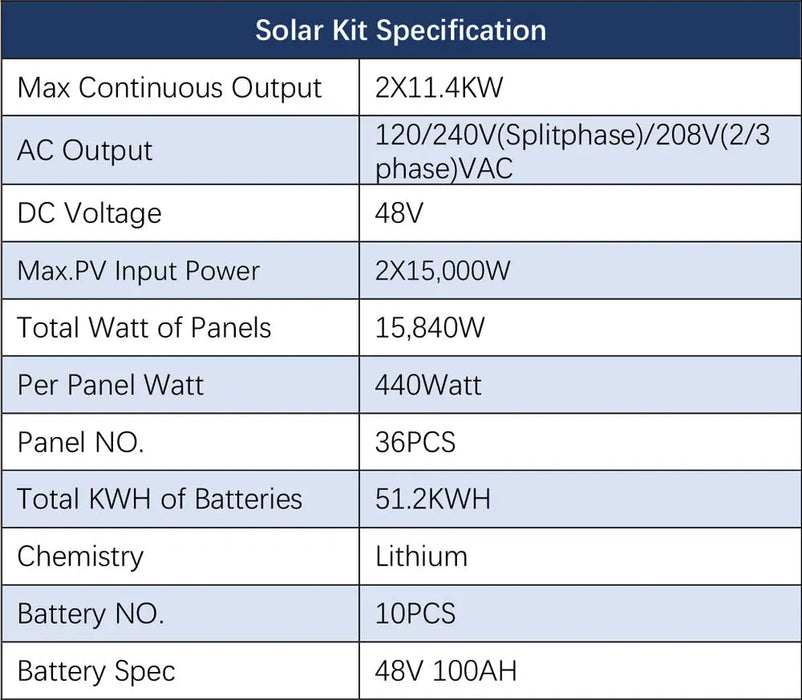

Specification

Sungold Power 11.4KW Hybrid Inverter 48V Split Phase

Sungold Power 48V 100AH LIFEPO4 LITHIUM BATTERY

440W Mono Black PERC Solar Panel UL 61730
