Sungold Power OFF-GRID Solar Kit 12000w 48V 120V/240V Output 10.24KWH Lithium Battery 5400w Solar Panels SGK-12MAX

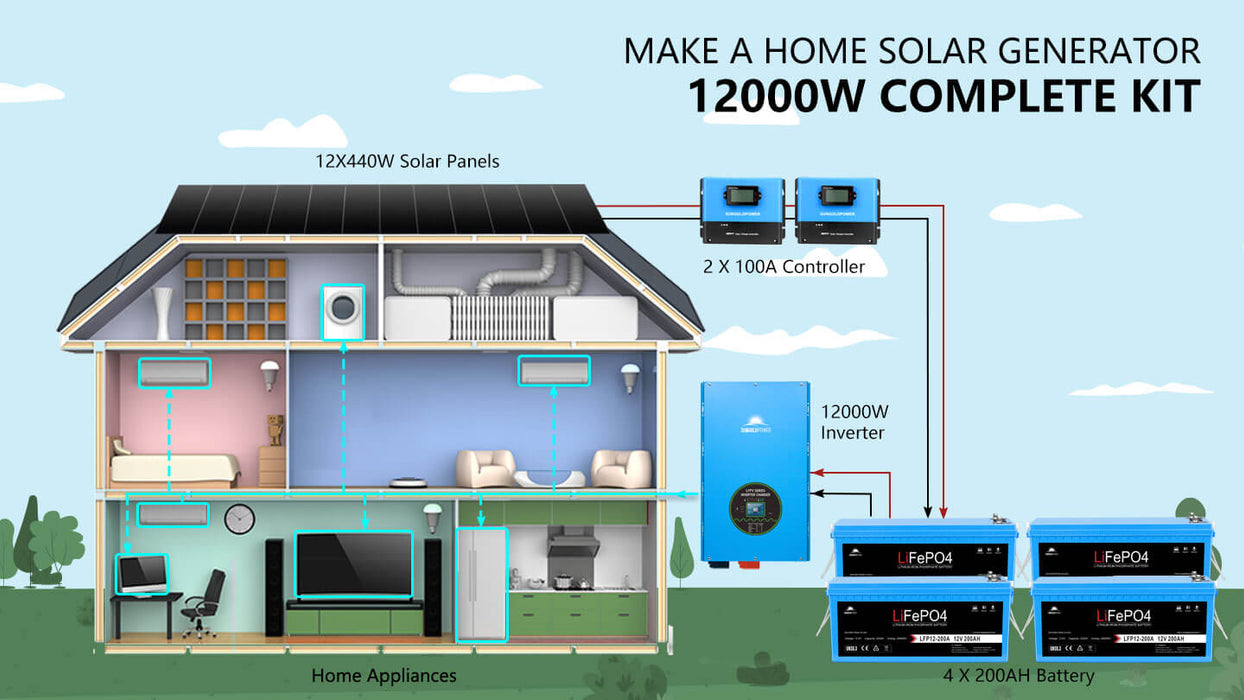

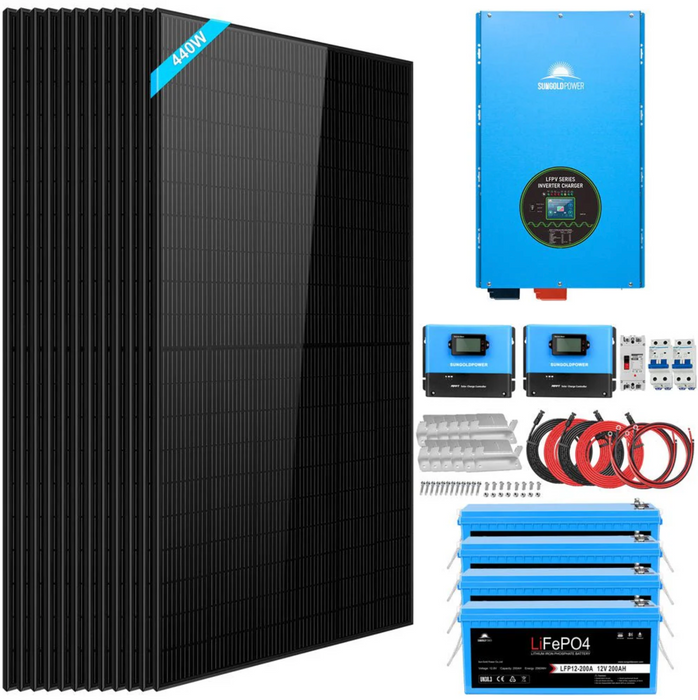

This all in one Off-Grid solar kit is perfect for home or mobile applications. Creating 120V for powering everything you need! It includes 12000W 48V AC120V/240V Split output Solar Inverter, 100A MPPT solar Charge Controller, 12x450W Solar Panels, 4x200AH Lithium Battery and everything else you will need to make the perfect Off-Grid system. You can easily extend the system by adding more solar panels or batteries in the future!

LF-PV Series Pure Sine Wave Inverter is a combination of a 48-volt inverter, AC charger, and Auto-transfer switch into one complete system (without MPPT).

The split-phase inverter requires 240VAC input and can provide 120VAC or 240VAC output power for all kinds of appliances, and it can output 50 or 60Hz via the SW4.

AC/Battery Priority: The 12000 watt power inverter is designed with AC priority by default, you can choose the battery priority by SW5 switch.

Features: Smart Remote Control, Automatic Generator Starting (AGS), Suitable for different kinds of batteries.

Application: for all kinds of loads: refrigerators, freezers, microwaves, dryers, air conditioners, pumps, and all the big home and business applications.

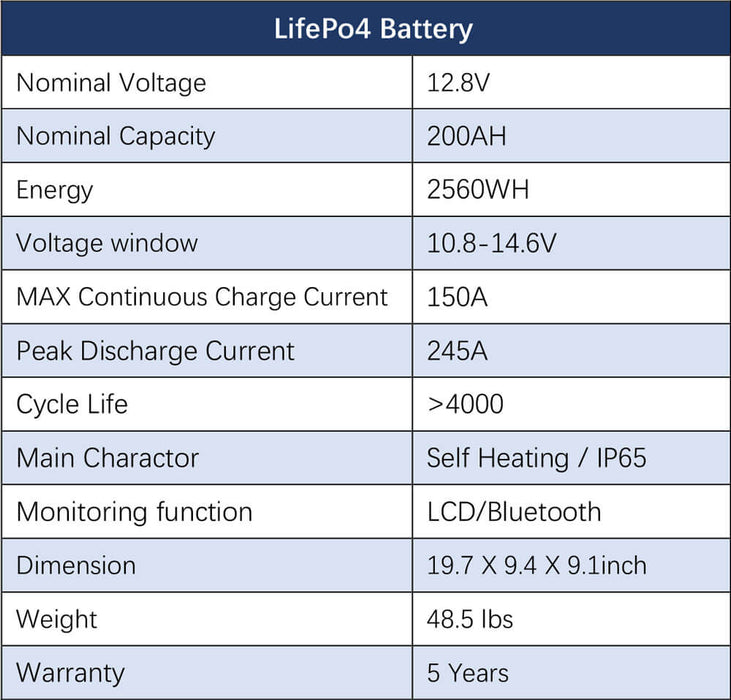

12V 200Ah LiFePo4 Deep Cycle Lithium Battery Bluetooth / Self-Heating / IP65

SUNGOLDPOWER 12V 200AH LiFePO4 Battery

The 12V 200AH LifePO4 Battery with advanced BMS and self-heating function ensure a 4000 long cycle life and exceptional discharge performance. If you’re searching for a deep cycle battery for caravan, RV, solar system, or marine use, this lightweight, auto-balanced, bluetooth, IP65 grade and long-cycle-life lithium-ion battery is the perfect solution for you.

Grade A battery Cell: Manufactured with automotive-grade battery cells with UL1973. High-quality battery cells make LiFePO4 battery provide 4000+deep cycles and more than 10 years lifetime, 5 years warranty.

Advanced BMS: 12V 200AH LifePO4 Battery Built-in 200A BMS provides comprehensive protection to the battery from overcharging & discharging, over current, short circuits, and high-temperature cut-off.

Bluetooth module/ LCD display: you can check the battery voltage/SOC on the LCD display. Bluetooth module can also help you monitor your battery's real-time information more accurately and conveniently on mobile devices.

Self-Heating Function: The intelligent self-heating function will be auto-activated operating when the battery’s core temperature drops below 33.8 °F (1 °C) and will be stopped when the temperature has reached 42.8 °F(6 °C). Perfect keeping your battery charged in cold winters, and are not restricted by the ambient temperature.

Massive Energy Expansion:  SUNGOLDPOWER 12v 200ah lithium ion battery supports in 12, 24, or 48V configurations, or connect in Parallel for Larger Capacity for your RV life, van life, solar system, camping, etc.

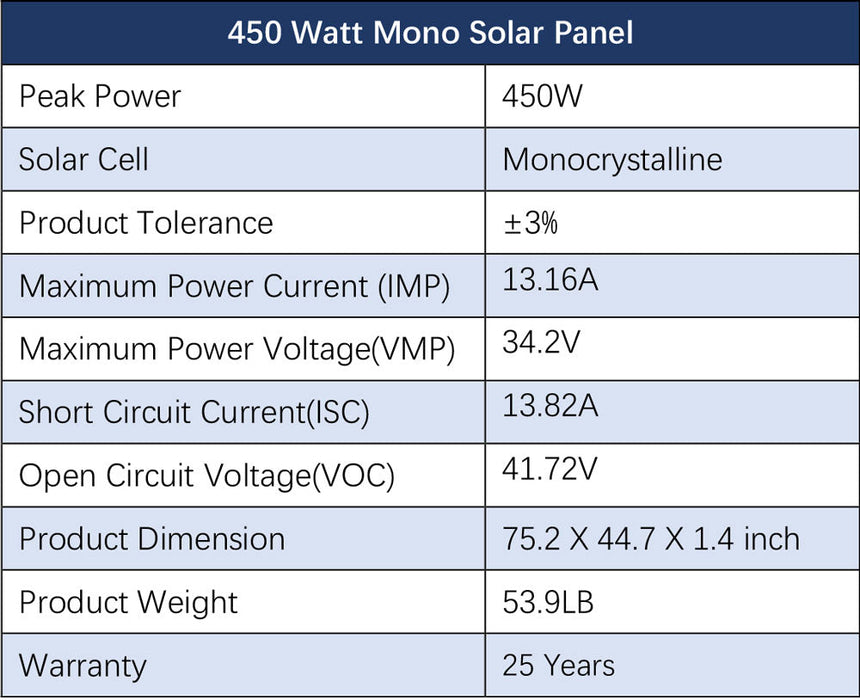

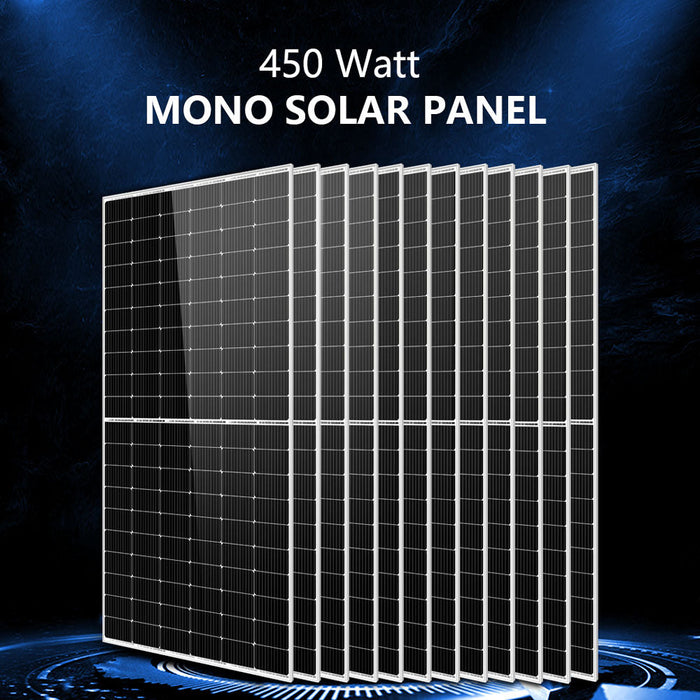

440W Mono Black PERC Solar Panel

Off-grid & On-grid Solution & Hybrid System

This high efficiency PERC Solar panel works for both on-grid /off-grid solar/hybrid solar system, storing energy with battery, reducing power bills, or powering complete off-grid house.

High Efficiency

High efficiency monocrystalline PERC module, 182mono half-cells with an all-black design.

Water Proof

The solar junction box and solar connectors with an IP68 rating is completely protected from dust and will properly functional after Temporary immersion in water (up to 1m deep).

Snow and Wind Protection

Passed load test of 5400 Pa to withstand heavier snow load and 2400 Pa to withstand wind pressure.

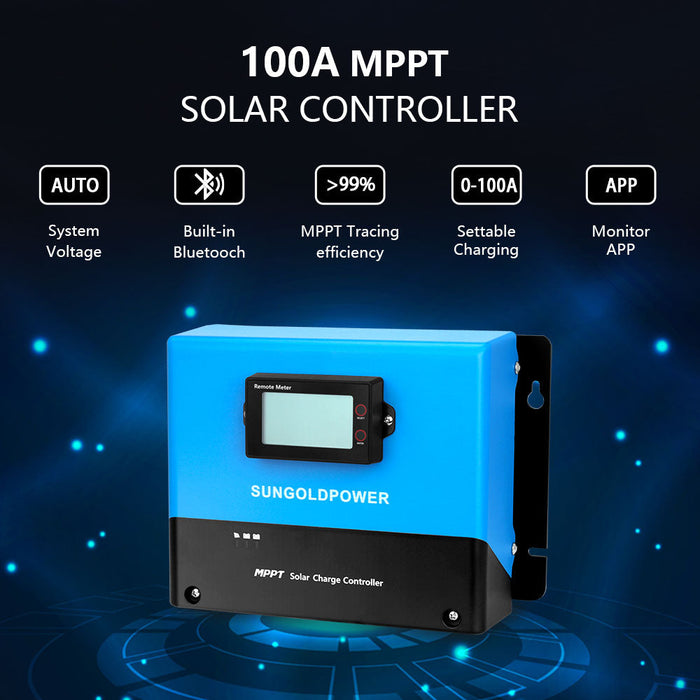

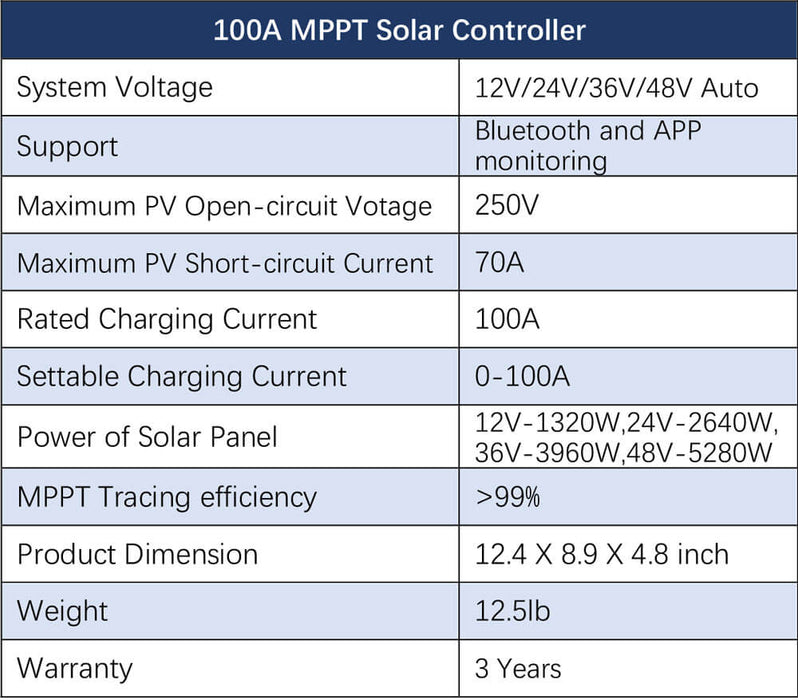

100 Amp MPPT Solar Charge Controller

The SunGoldPower 100A MPPT Charge Controller is the most efficient type of charge controller. With up to 99.9% tracking efficiency, it ensures maximum power point solar charging that gets more energy to your battery bank. Auto-detecting 12V/24V/36V/48V different batteries system, Also you can view system performance in real-time with bluetooth!

Automatically detects 12V,24V, 36V and 48V DC system voltages

MPPT Tracking efficiency can be as much as 99.9%.

Support battery types: lithium batteries, sealed batteries, AGM Battery and self-definition.

With built-in over temperature protection and current -limited charging

Supports parallel function and breaks through the power limit of single unit.

With built-in Bluetooth module, it can achieve mobile phone APP data interaction.

LCD screen indicators for displaying system operation information, customizable parameters, and error codes.

Specifications

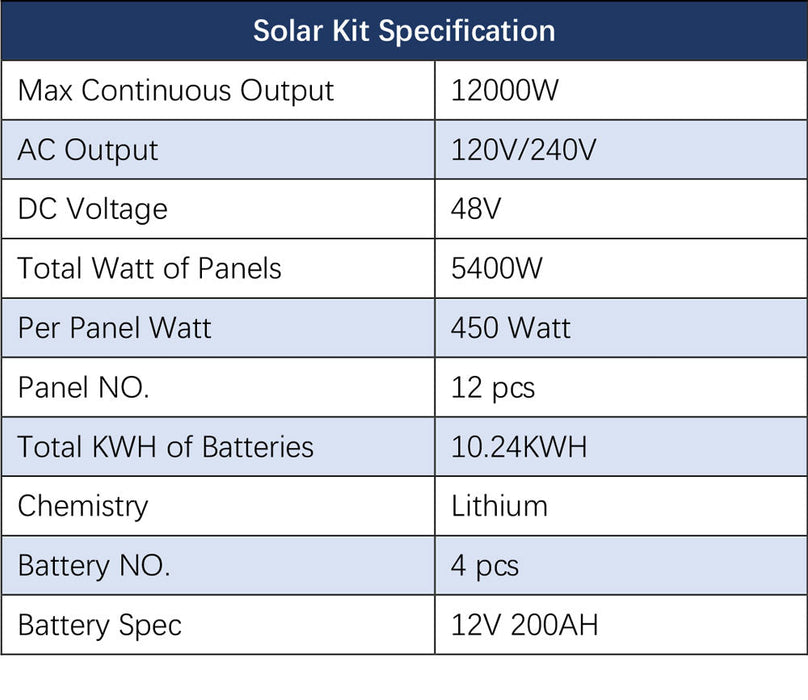

Sungold Power OFF-GRID Solar Kit 12000w 48V 120V/240V Output 10.24KWH Lithium Battery 5400w Solar Panels SGK-12MAX Product Specifications

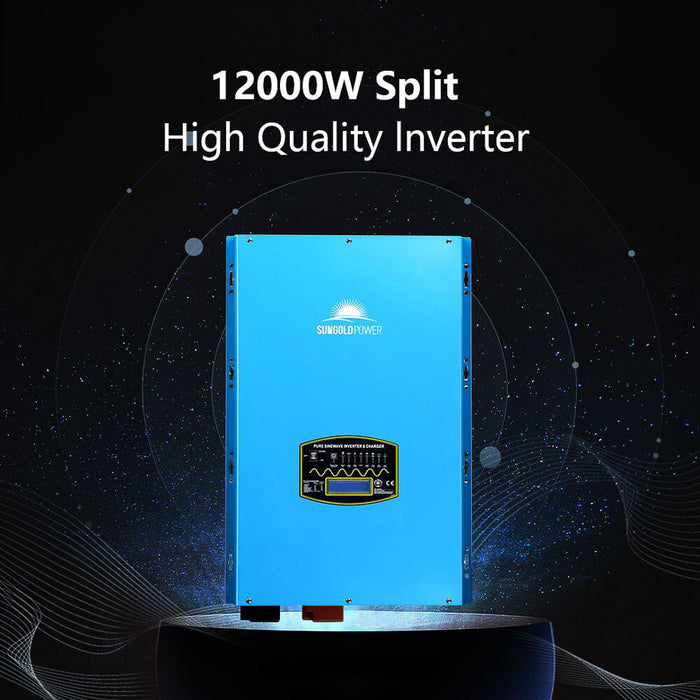

12000W 48V Split Phase Pure Sine Wave Inverter Charger

Main Features:
*12KW split phase pure sine inverter charger DC 48V AC 240V input AC output 120V/240V
*Auto Generator Start (AGS)
*Include Battery Temperature Sensor (BTS) and Remote Control
*8 kinds of battery voltage selection ( lithium LiFePO4, gel, AGM and lead Acid batteries）
*Compatible With All kind of Home & Office Appliances
*Powerful Charge Rate Up to 120Amp, Selectable From 0%-100%
*Built-in transfer switch and battery charge, backup or off grid power solutions
*AC/Battery Priority Mode, Designates the Inverter-Preferred UPS Configuration
*4-step Intelligent Battery Charging, PFC (Power Factor Correction) for Charger
*8 ms Typical Transfer Time Between Utility & Battery,Ensure Power Continuity
*15s Delay Before Transfer when AC Recover, Protection for Load when Used with Generator

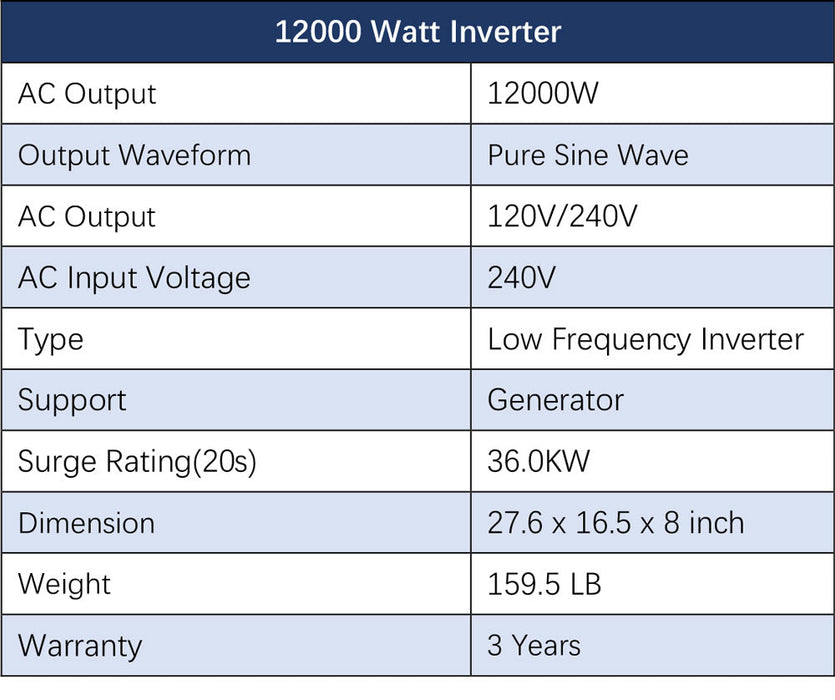

Main Specification：
Continuous Output Power: 12.0KW
Surge Rating(20s): 36.0KW
Output Waveform: Pure Sine Wave
AC Output Voltage: 120V and 240V
AC Input Voltage: 240V ( not suitable for AC 120V input )
DC Battery Voltage: 48Vdc
AC Battery charger: 115±5Amp
Output Frequency: 50Hz /60Hz
Typical transfer Time: 10ms(Max)

DC Input:
Nominal Input Voltage: 48.0Vdc
Minimum Start Voltage: 40.0Vdc/ 42.0Vdc
Low Battery Alarm: 42.0Vdc / 44.0Vdc
Low Battery Trip: 40.0Vdc / 42.0Vdc
High Voltage Alarm: 64.0Vdc
Low Battery voltage recover: 62.0Vdc
Power Saver on Idle Consumption: 40W
Power Saver off Idle Power: 180W

Charger :
Output Voltage: Depends on battery type
Battery Initial Voltage for Start Up: 40-62.8V
Over Charge Protection Shutdown: 62.8V
Charger Breaker: 80A
Input Voltage Waveform: Sine wave (Grid or Generator)
AC input range:184-253Vac/140-270Vac
Nominal Input Frequency :50Hz or 60Hz (Auto detect)

Packaging:
*12000W 48V Split Phase Pure Sine Wave Power Inverter
*English Manual
*Remote Control
*BTS Cable
*Unit Weight: 160LB
*Unit Size: 27.6 x 16.5 x 8 inch
*Shipping Weight: 185 LB
*Shipping Size: 29.2 x 23 x 16.5 inch

12V 200Ah LiFePo4 Deep Cycle Lithium Battery Bluetooth / Self-Heating / IP65

User Manuals

Sungold Power OFF-GRID Solar Kit 12000w 48V 120V/240V Output 10.24KWH Lithium Battery 5400w Solar Panels SGK-12MAX User Manuals

Sungold Power 2000 Watt Inverter

Sungold Power 200AH Lifepo4 battery with Bluetooth

Sungold Power 440 Watt Monocrystalline Solar Panels

Sungold Power 100A MPPT Solar Controllers

Wiring Diagram

Sungold Power OFF-GRID Solar Kit 12000w 48V 120V/240V Output 10.24KWH Lithium Battery 5400w Solar Panels SGK-12MAX Wiring Diagram

Sungold Power OFF-GRID Solar Kit 12000w 48V 120V/240V Output 10.24KWH Lithium Battery 5400w Solar Panels SGK-12MAX Wiring Diagram
