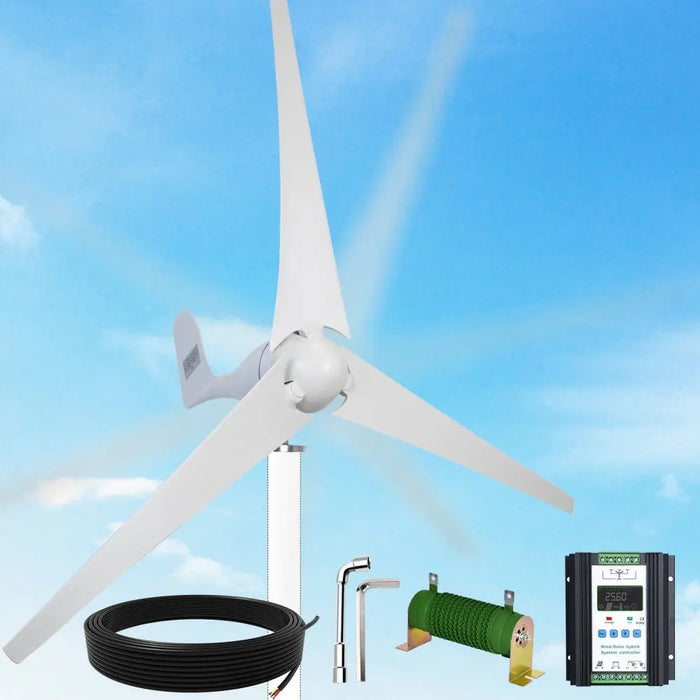

Eco-Worthy 400W 12V/24V Wind Turbine Generator With 40A Hybrid Controller
ECO-WORTHY 400W 12V/24V Wind Turbine is a smart choice and affordable for remote homes and cabins in windy areas. Electricity produced by wind generation can be stored in batteries for household use when needed. Wind generators can be used alone, or they may be used as part of a hybrid system, in which their output is combined with that of photovoltaic. Hybrid systems are especially useful for winter backup of home systems where cloudy weather and windy conditions occur simultaneously.
Low Start-Up Speed: ECO-WORTHY 400W Wind Turbine Generator has a low start-up speed of 5.6mph (2.0m/s), generating power even when the wind is not that strong.

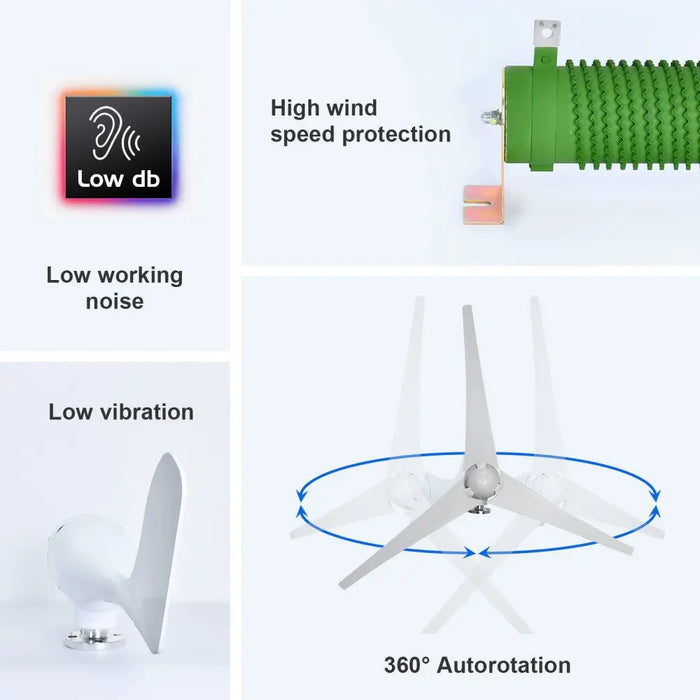

Enhanced Blade: 3 enhanced nylon fiber blades made by precision molding make it lightweight, durable, low noise and low vibration.

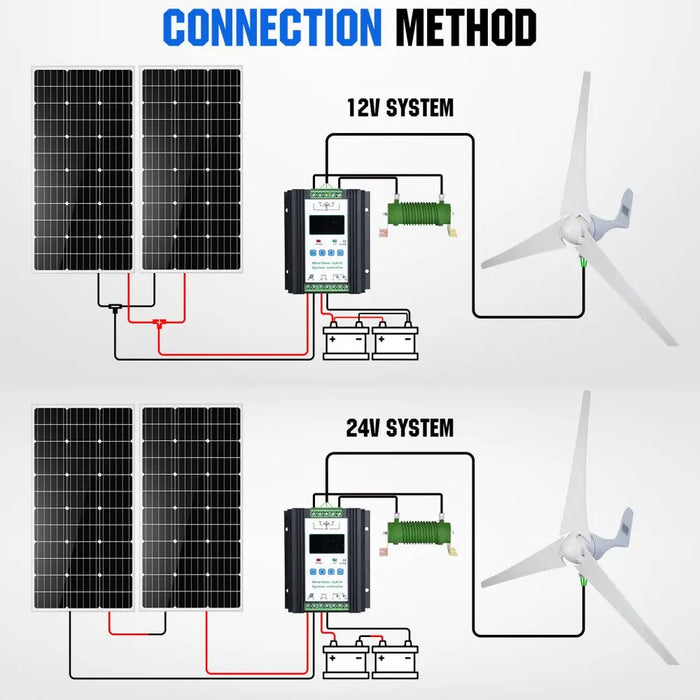

PWM Hybrid Controller: The Wind Turbine Generator Power Kit includes a 40A PWM Hybrid Controller for battery protection. It can automatically shut down when the battery is fully charged, protect it from overcharge and short circuit. It's can also be connected to solar panels for hybrid power generation.

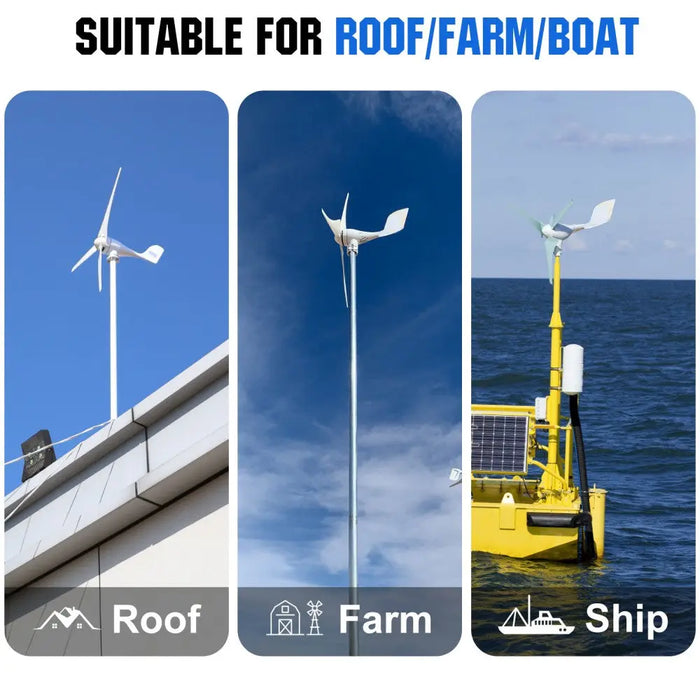

Various Applications: The Wind Turbine Generator is designed for both land and marin uses. It's suitable for your house, farm, gazebo, rv and boat.
Maintenance-free: Our Wind Turbine Generator is made of carbon fiber composite and cast-aluminum, making it durable and maintenance-free. You can install it outdoor regardless of environment, weather and seasons.
Specifications
400W Wind Turbine Generator
Rated voltage: 24V |
Rated wind speed: 13M/S |
Starting wind speed: 2.0M/s |
Maximum wind speed: 50M/S |

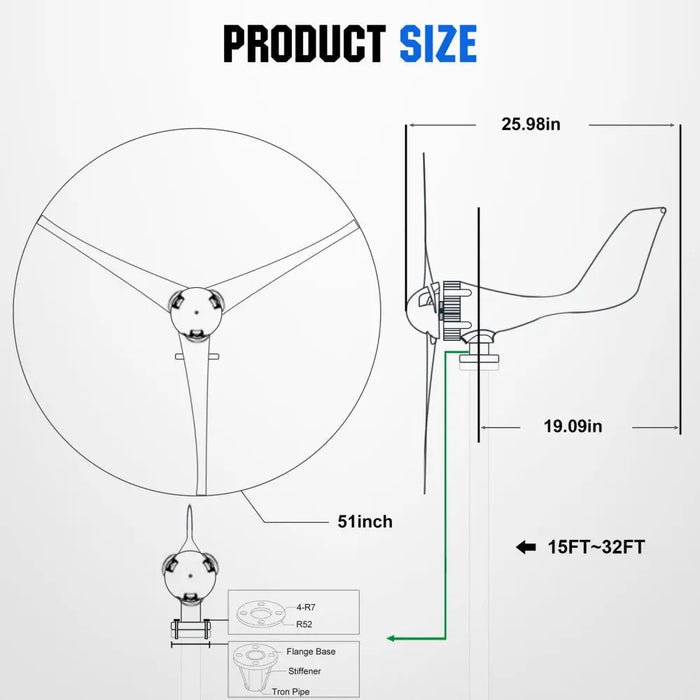

Blade diameter: 1.3M |
Rated power: 400W |
Net weight: 5kg |
|
40A Hybrid Controller
Battery system voltage level: 24V |
PV array maximum open circuit voltage: 55.2V |
Recovery Voltage after PV array maximum open circuit voltage: 52.8V |
PV array minimum operating voltage: >Vbat+1V |
Photovolinic rated current rating: 40A |
PV module power: ≤1000W |
Fan rated voltage level: 24V |
Fan array maximum open circuit voltage: 51.2V |
Fan rated current: 33A |
Wind Turbine Power: ≤800W |
Voltage of restriction charging: Vbat>BCV+0.4V |
DC load output rated current: 30A |
