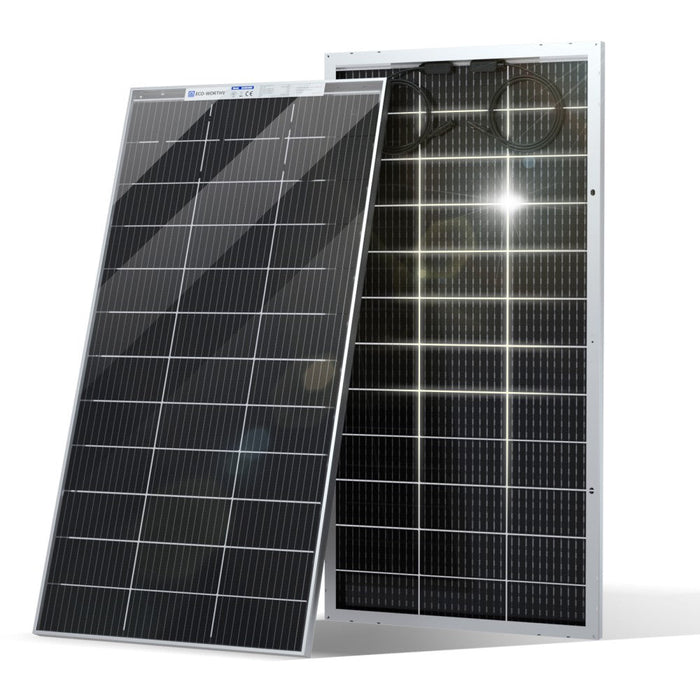

ECO-WORTHY Bifacial 195W 12V Monocrystalline Solar Panel

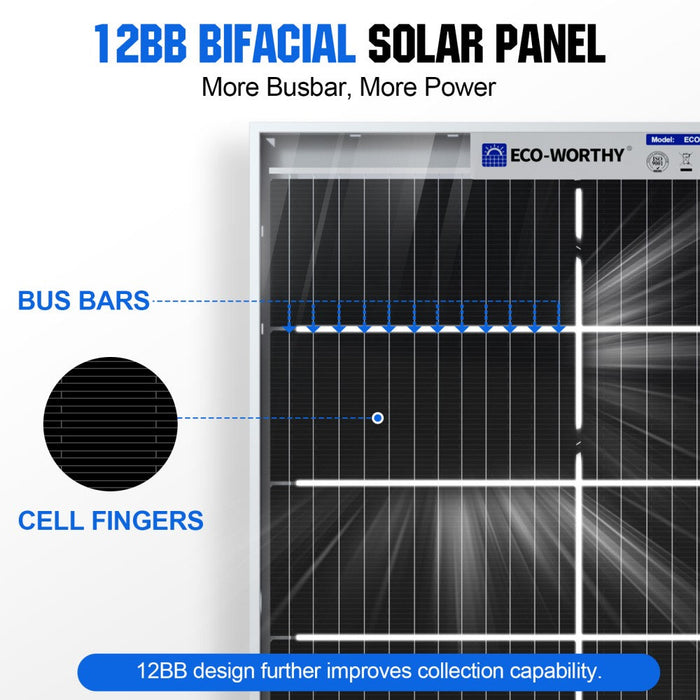

Bifacial Energy Yield up to 33%: Bifacial solar panels are designed with a transparent back of 12BB solar cells, the back panel uses composite materials, the light transmittance up to 91.5%, the conversion rate of 23%, the power generation is 858Wh per day under ideal conditions, compared to traditional solar panels, the power can up to 33%.

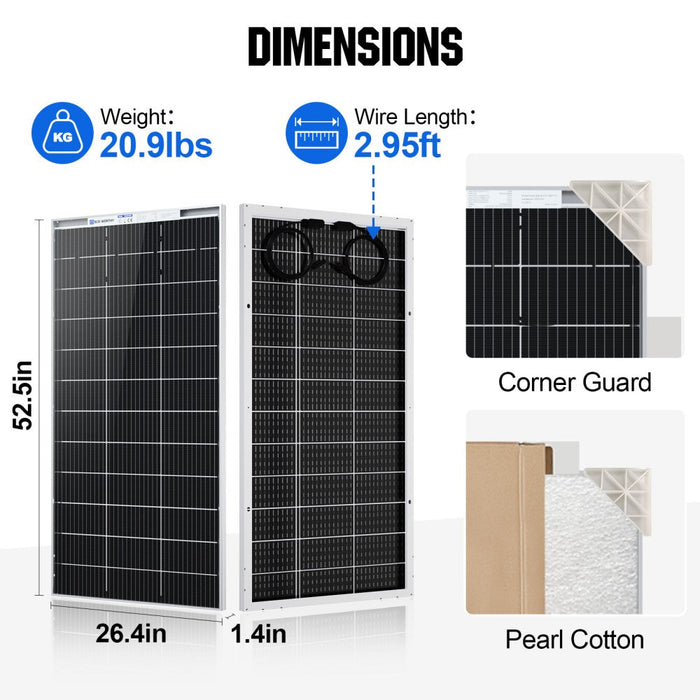

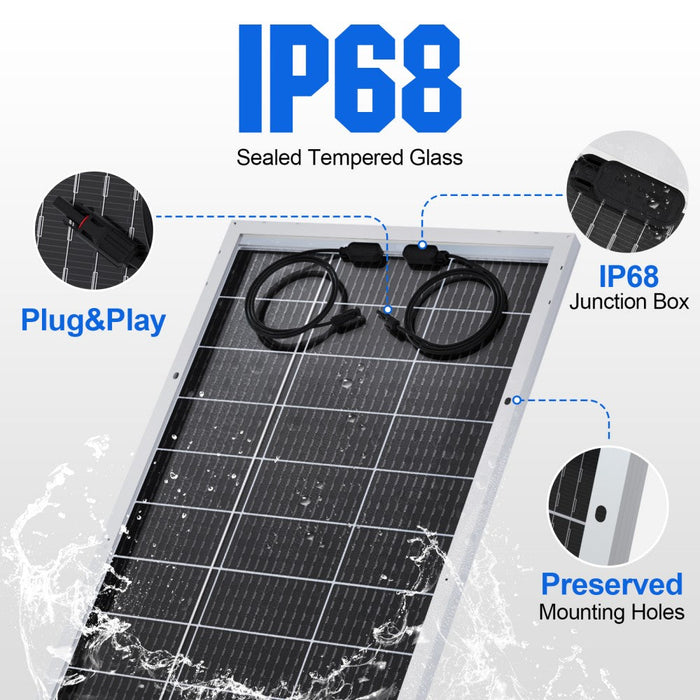

Easy to Install: Size: 52.6 x 26.4 x 1.4 inches (1335*670*35mm), weight 20.48 Lbs. Diodes are pre-installed in junction box, with a pair of pre-attached 2.95ft Cable.

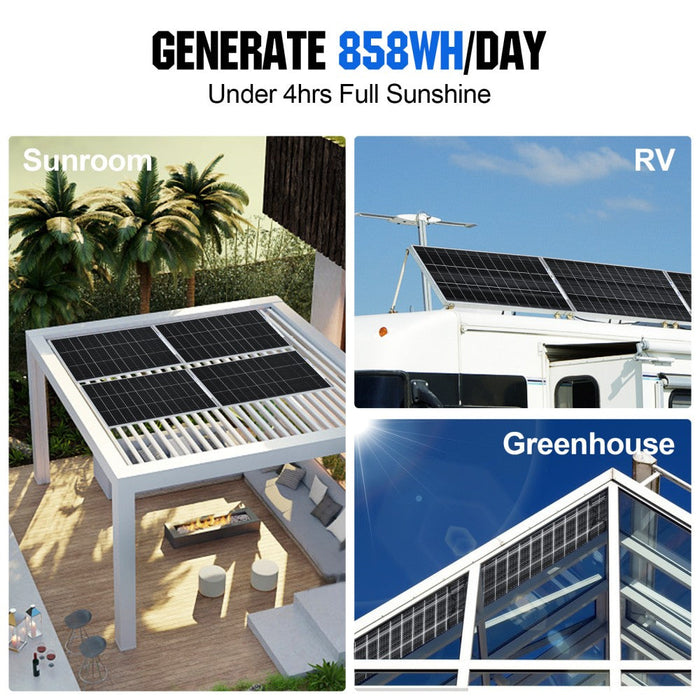

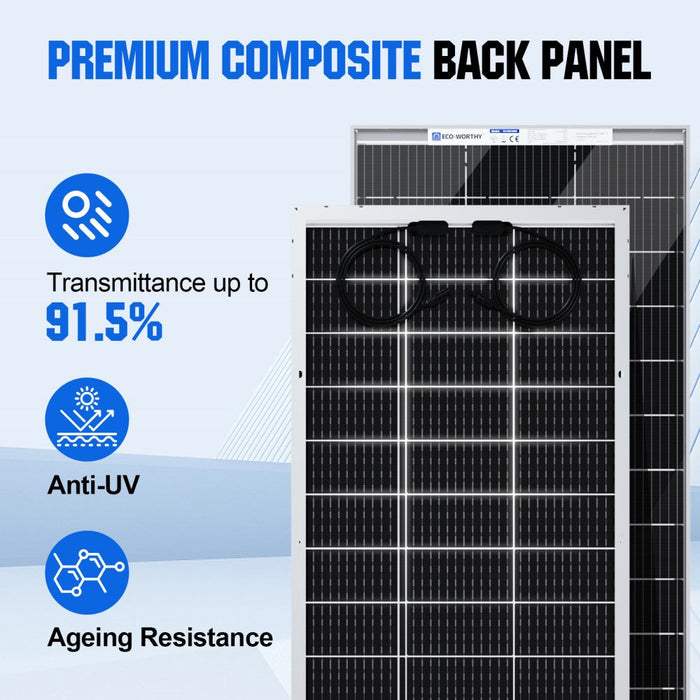

Transparent Back Panel: Almost 91.5% transmittance makes the back panel well convert sun scattered light even when the front side is shaded, which is widely chosen to be used in sunroom, entrance canopy, farm greenhouse and motorhome.
·

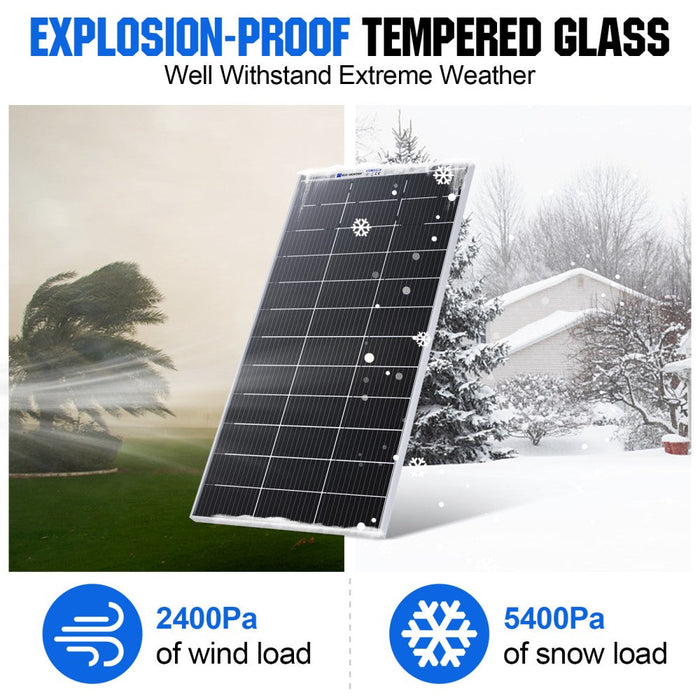

Solid Components: The back panel, made of composite material, is windproof and snow-resistant. The metal aluminum frame is rust-proof and anti-corrosion. And the pre-installed hole design makes it easy to install.
After-sale Services: As a professional solar system manufacturer, whenever you encounter any problems, ECO-WORTHY Solar Panels Service will actively provide you with professional off grid system solutions within 24hrs.
Specifications
Rated Power: 195W |
Solar Cell: Monocrystalline |
Maximum/Peak Voltage(Vmp): 19.8V |
Open Circuit Voltage(Voc): 23.7V |
Short circuit current: 10.5A |
Maximum current: 9.85A |
Output Tolerance: ±3% |
Temperate coefficient of Isc: (010+/-0.01)%/℃ |
Temperate coefficient of Voc: -(0.38+/-0.01)%/℃ |
Temperature range: -40℃~ +85℃ |
Frame: Aluminum alloy frame |
Weight: 20.48 lbs(9.29 kg) |
Size: 52.6x26.38x1.38in (1335*670*35mm) |
