Discover our wide selection of RUiXU Lithium Batteries Kits, providing flexible energy storage solutions tailored for your needs. My Generator Plus offers 15kWH, 20kWH, 25kWH, and 30kWH configurations. Our kits offer dependable and effective power storage for various residential, commercial, and industrial uses. Through cutting-edge lithium battery technology, you can experience extended performance and effortless integration with your on-grid or off-grid energy setup. RUiXU Lithium Batteries Kits provide the necessary energy storage capacity to achieve independent and dependable power solutions.

Support up to 32 units in parallel, scale from 5 kWh to 160 kWh configuration without external controller.

Self-heating RUiXU 48V server rack battery is designed for cold weather using!

Can safely charge at temperatures down to -20°C (-4°F) by a standard charger or solar charger.

The heater pads which draws power from the charger itself.

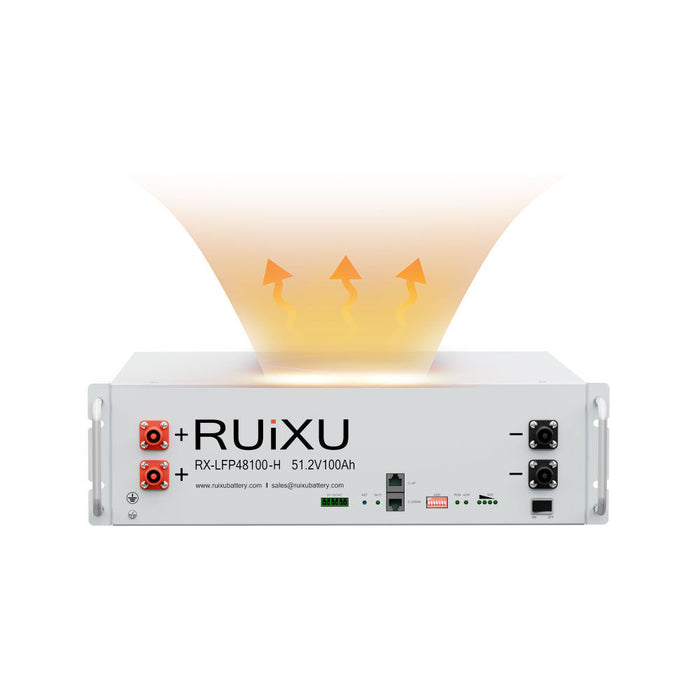

RUiXU 48V Rack Battery RX-LFP48100-H  Self-Heating

Nominal voltage ：51.2V

Nominal capacity@0.2C ：100 Ah

Min. capacity@0.2C：100 Ah

​Nominal energy :5120Wh

Dimension (W*D*H):482.6x460x133mm | 19 x 18.1 x 5.23 inch

Weight: ~47kg (103.6lb)

Specifications

Inverter Protocol Choosing

Use DIP address to set the RS485 baud rate and inverter protocol choosing

Communications

Canbus : Victron,SMA,Studer Innotec,Sofar,Solark,Solis,Goodwe,Deye,

Growatt,SAJ,LUXPOWER,Megarevo,INVT,Sermatec,TBB,

MUST,Sunsynk,Schneider
RS485 : MPP,Voltronic,RCT,Alpha outback

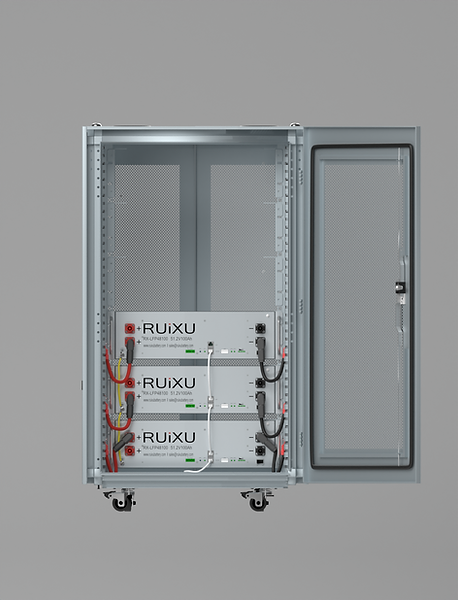

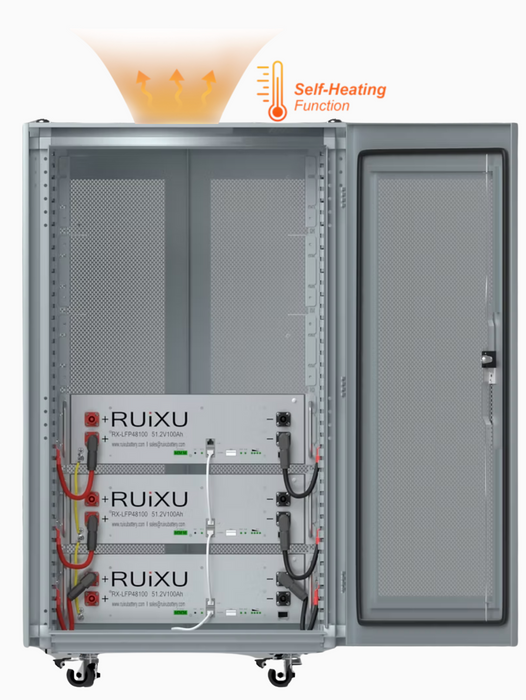

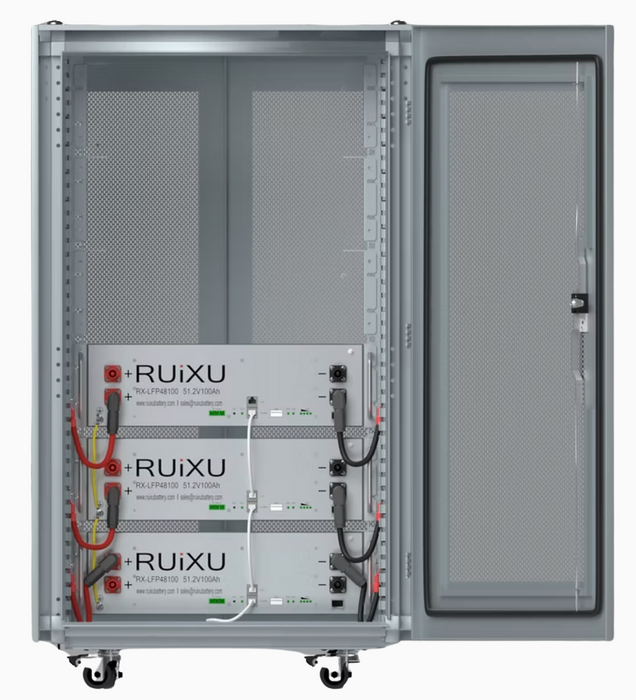

15kWh Lithium Batteries Kits Standard Included:

(3) RUiXU self-heating 48V Server Rack battery (RX-LFP48100-H)
(3) RJ45/CAT5e Patch Cable

(3) Ground Cable

(3) Sets 30cm Parallel 4AWG Cables  per battery

(1)  Pre-assembled 6 Slot Battery Cabinet

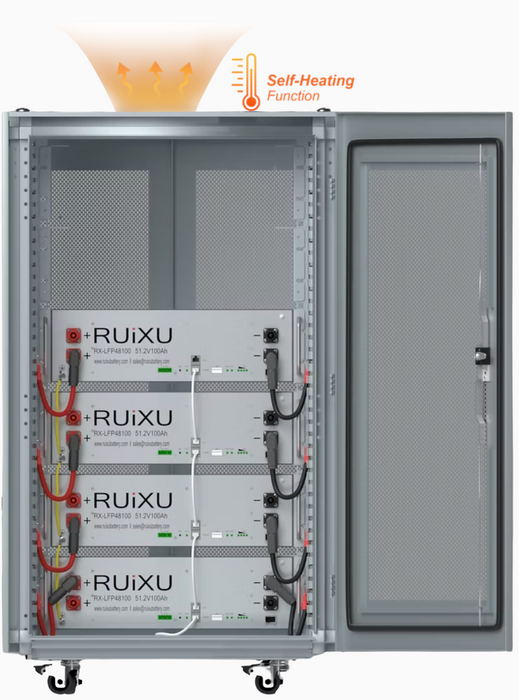

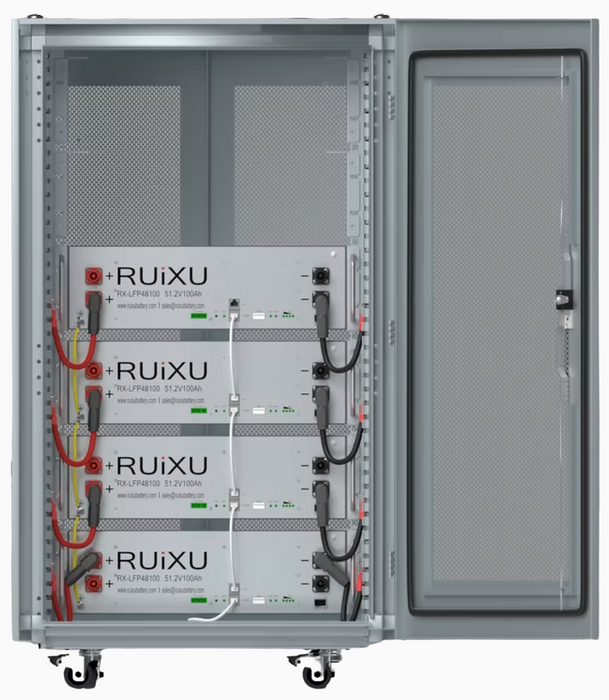

20kWh Lithium Batteries Kits Standard Included:

(4) RUiXU self-heating 48V Server Rack battery (RX-LFP48100-H)
(4)  RJ45/CAT5e Patch Cable

(4) Ground Cable

(4) Sets 30cm Parallel 4AWG Cables  per battery

(1)  Pre-assembled 6 Slot Battery Cabinet

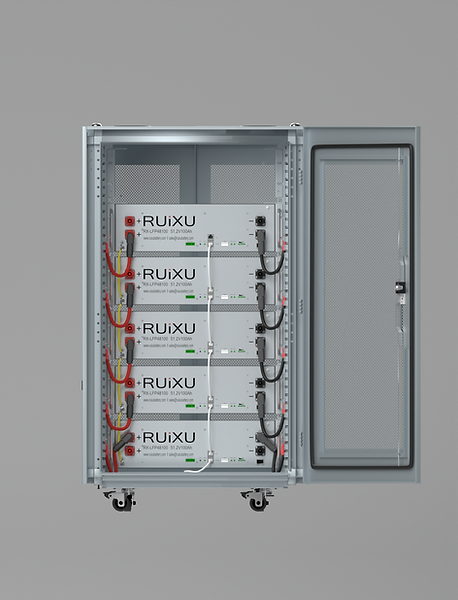

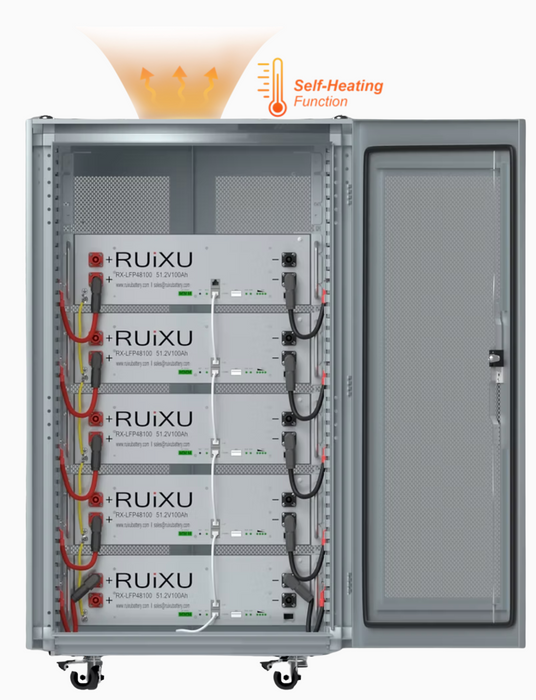

25kWh Lithium Batteries Kits Standard Included:

(5) RUiXU Self-heating 48V Server Rack battery (RX-LFP48100-H)
(5) RJ45/CAT5e Patch Cable

(5) Ground Cable

(5) Sets 30cm Parallel 4AWG Cables  per battery

(1)  Pre-assembled 6 Slot Battery Cabinet

30kWh Lithium Batteries Kits Standard Included:

(6) RUiXU self-heating  48V Server Rack battery (RX-LFP48100-H)
(6)  RJ45/CAT5e Patch Cable

(6) Ground Cable

(6) Sets 30cm Parallel 4AWG Cables  per battery

(1)  Pre-assembled 6 Slot Battery Cabinet
