WHAT IS INCLUDED WITH THE COMPLETE SOLAR KIT
SGR-12K20E

1 x 12000 Watt 48V DC 120V/240V AC Output Inverter
A high-capacity inverter capable of providing 120V/240V split-phase output, ideal for running large appliances like air conditioners, refrigerators, well pumps, lights, and more.

12 x 415 Watt Monocrystalline Solar Panels
High-efficiency solar panels designed to capture maximum sunlight and generate reliable, renewable energy for your off-grid needs.

5 x 100AH 51.2V LiFePO4 Batteries
Long-lasting lithium iron phosphate batteries with a total of 20.48kWh storage capacity, ensuring you have plenty of energy for use day or night, and during cloudy weather.

1 x Server Rack for 5 x 100AH 51.2V LiFePO4 Batteries
A secure and organized storage rack to house the batteries, designed for easy access and installation.

2 x 100A MPPT Solar Charge Controllers
High-efficiency charge controllers that ensure optimal energy transfer from your solar panels to your batteries, maximizing the performance of your system.

2 Sets x 50 Feet Solar Extension Cables (Inverter PV Input)
Essential cables for connecting your solar panels to the inverter and ensuring seamless energy flow.

2 Sets x Cables Between Battery and MPPT Controller
Cables for connecting your LiFePO4 batteries to the MPPT charge controllers, ensuring proper charging and energy management.

12 x Sets of Mounting Z-Brackets
The necessary mounting brackets for securely installing your solar panels, providing a stable and reliable setup.

1 x 400A DC Breaker
A high-amperage breaker for safely disconnecting and protecting the DC side of the system.

2 x 25A PV Breakers
Breakers designed to protect your solar panel connections from overloads and faults.

Sungold Power 12000W 48V Split Phase Pure Sine Wave Inverter

ChargerLF-PV Series Pure Sine Wave Inverter is a combination of a 48-volt inverter, AC charger, and Auto-transfer switch into one complete system (without MPPT).

The split-phase inverter requires 240VAC input and can provide 120VAC or 240VAC output power for all kinds of appliances, and it can output 50 or 60Hz via the SW4.

AC/Battery Priority: The 12000 watt power inverter is designed with AC priority by default, you can choose the battery priority by SW5 switch.

Features: Smart Remote Control, Automatic Generator Starting (AGS), Suitable for different kinds of batteries.

Application: for all kinds of loads: refrigerators, freezers, microwaves, dryers, air conditioners, pumps, and all the big home and business applications.

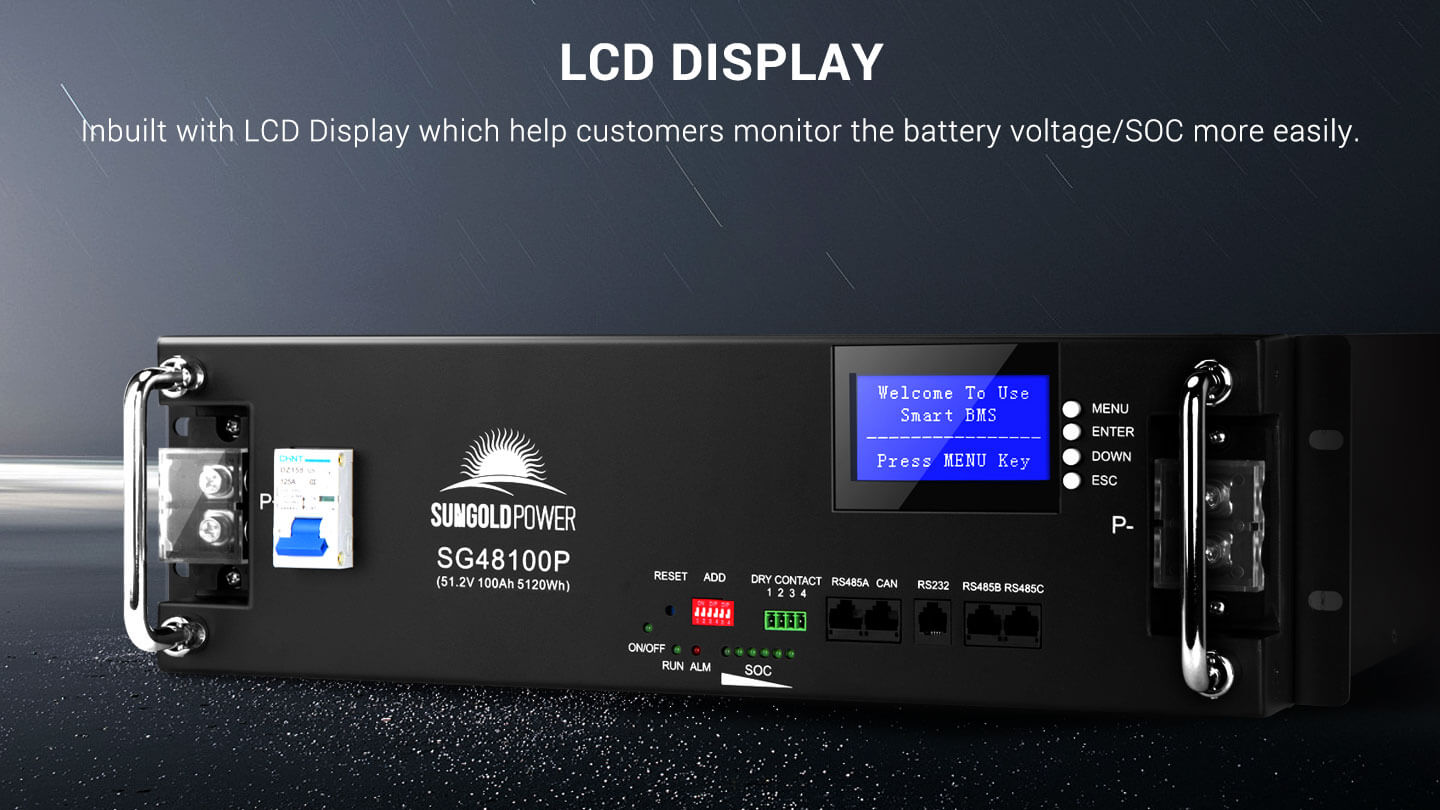

Character: The 51.2V 100AH LFP Battery is compact, well-designed, LCD, and cable/accessories ready for installation. ≥7000 cycles deep cycle & 10 years warranty, designed for up to 15-year life. UL1973.

Intelligent BMS: Battery Management System of the 48v server rack battery can manage and monitor cells information including voltage, current and temperature, protects it from overcharge, deep discharge, overloading, overheating and short circuit, help to extend lifetime.

Flexible: Modular design, easy to expand, max 32 units in parallel capacity of 163.84kwh, suitable to residential and commercial applications and other energy storage system for increasing the self-consumption ratio.

Compatible: CAN/RS485/RS232 Communication Protocol Lithium Ion Battery can be compatible with most inverters in the market, such as Growatt, Deye, SunGoldPower, Luxpower, Victron energy, Schneider, Phocos, SMK and so on.

Sungold Power 415W Mono Black PERC Solar Panel

Off-grid & On-grid Solution & Hybrid System

This high efficiency PERC Solar panel works for both on-grid /off-grid solar/hybrid solar system, storing energy with battery, reducing power bills, or powering complete off-grid house.

High Efficiency

High efficiency monocrystalline PERC module, 182mono half-cells with an all-black design.

Water Proof

The solar junction box and solar connectors with an IP68 rating is completely protected from dust and will properly functional after Temporary immersion in water (up to 1m deep).

Snow and Wind Protection

Passed load test of 5400 Pa to withstand heavier snow load and 2400 Pa to withstand wind pressure.Home Solar System

With balanced power, improved stability, and economical electricity costs.

Sungold Power 100 Amp MPPT Solar Charge Controller

The SunGoldPower 100A MPPT Charge Controller is the most efficient type of charge controller. With up to 99.9% tracking efficiency, it ensures maximum power point solar charging that gets more energy to your battery bank. Auto-detecting 12V/24V/36V/48V different batteries system, Also you can view system performance in real-time with bluetooth!

Automatically detects 12V,24V, 36V and 48V DC system voltages

MPPT Tracking efficiency can be as much as 99.9%.

Support battery types: lithium batteries, sealed batteries, AGM Battery and self-definition.

With built-in over temperature protection and current -limited charging

Supports parallel function and breaks through the power limit of single unit.

With built-in Bluetooth module, it can achieve mobile phone APP data interaction.

LCD screen indicators for displaying system operation information, customizable parameters, and error codes.

12000W 48V Split Phase Pure Sine Wave Inverter Charger

Main Features:
*12KW split phase pure sine inverter charger DC 48V AC 240V input AC output 120V/240V
*Auto Generator Start (AGS)
*Include Battery Temperature Sensor (BTS) and Remote Control
*8 kinds of battery voltage selection ( lithium LiFePO4, gel, AGM and lead Acid batteries）
*Compatible With All kind of Home & Office Appliances
*Powerful Charge Rate Up to 120Amp, Selectable From 0%-100%
*Built-in transfer switch and battery charge, backup or off grid power solutions
*AC/Battery Priority Mode, Designates the Inverter-Preferred UPS Configuration
*4-step Intelligent Battery Charging, PFC (Power Factor Correction) for Charger
*8 ms Typical Transfer Time Between Utility & Battery,Ensure Power Continuity
*15s Delay Before Transfer when AC Recover, Protection for Load when Used with Generator

Main Specification：
Continuous Output Power: 12.0KW
Surge Rating(20s): 36.0KW
Output Waveform: Pure Sine Wave
AC Output Voltage: 120V and 240V
AC Input Voltage: 240V ( not suitable for AC 120V input )
DC Battery Voltage: 48Vdc
AC Battery charger: 115±5Amp
Output Frequency: 50Hz /60Hz
Typical transfer Time: 10ms(Max)

DC Input:
Nominal Input Voltage: 48.0Vdc
Minimum Start Voltage: 40.0Vdc/ 42.0Vdc
Low Battery Alarm: 42.0Vdc / 44.0Vdc
Low Battery Trip: 40.0Vdc / 42.0Vdc
High Voltage Alarm: 64.0Vdc
Low Battery voltage recover: 62.0Vdc
Power Saver on Idle Consumption: 40W
Power Saver off Idle Power: 180W

Charger :
Output Voltage: Depends on battery type
Battery Initial Voltage for Start Up: 40-62.8V
Over Charge Protection Shutdown: 62.8V
Charger Breaker: 80A
Input Voltage Waveform: Sine wave (Grid or Generator)
AC input range:184-253Vac/140-270Vac
Nominal Input Frequency :50Hz or 60Hz (Auto detect)

Packaging:
*12000W 48V Split Phase Pure Sine Wave Power Inverter
*English Manual
*Remote Control
*BTS Cable
*Unit Weight: 160LB
*Unit Size: 27.6 x 16.5 x 8 inch
*Shipping Weight: 185 LB
*Shipping Size: 29.2 x 23 x 16.5 inch

48V 100AH Server Rack LiFePO4 Lithium Battery

415W Mono Black PERC Solar Panel

100 Amp MPPT Solar Charge Controller
