Sungold Power Off-Grid Solar Kit 15000W SGR-15K20E

The Sungold Power SGR-15K20E Off-Grid Solar Kit is the ultimate solution for those seeking to power their home, cabin, commercial or industrial applications without relying on the grid. This complete solar kit includes everything you need to generate clean, reliable, and renewable energy. With 20 high-efficiency 415W solar panels, 30.72KWh of lithium iron phosphate (LiFePO4) battery storage, and a powerful 15KW split-phase inverter, this kit will provide you with off-grid power for a wide range of applications.

Why Choose the Sungold Power SGR-15K20E Off-Grid Solar Kit

Powerful and Reliable: Capable of running heavy-duty appliances and equipment with ease.

Expandable: Add more solar panels and batteries as your needs grow.

Long-Term Investment: Save on energy costs while increasing your home’s value.

Clean Energy: Harness the power of the sun to reduce your carbon footprint and live more sustainably.

Flexible and Easy to Use: A scalable system that is perfect for off-grid living, emergency backup power, or remote locations.

Take control of your energy with the Sungold Power SGR-15K20E Off-Grid Solar Kit and experience the freedom of off-grid living with a reliable, powerful, and cost-effective solar solution.

Key Features

High Power Output:
With a 15,000W inverter (48V DC, 120V/240V AC), this system can easily power your home, office, workshop, or even light commercial and industrial equipment, including air conditioners, well pumps, lights, fridges, and more.

Reliable Energy Storage:
Includes 6 x 100Ah 51.2V LiFePO4 batteries (30.72KWh total), offering reliable, long-lasting energy storage to ensure you always have power when you need it.

Scalable and Expandable:
This system is designed for future expansion, allowing you to easily add more solar panels and batteries as your energy needs grow.

Efficient and Flexible:
The 20 x 415W Monocrystalline Solar Panels offer optimal energy production, while the system’s 100A MPPT solar charge controllers maximize charging efficiency.

Safe and Durable:
Comes with an enclosed battery cabinet to securely store your LiFePO4 batteries and ensure optimal protection. Additionally, the 400A DC breaker and PV breakers provide excellent protection for your system.

Easy to Install:
The kit includes mounting Z-brackets and solar extension cables, ensuring a simple and quick setup.

Energy Independence:
With the SGR-15K20E, you can fully embrace off-grid living, reduce your reliance on the grid, and take control of your energy costs.

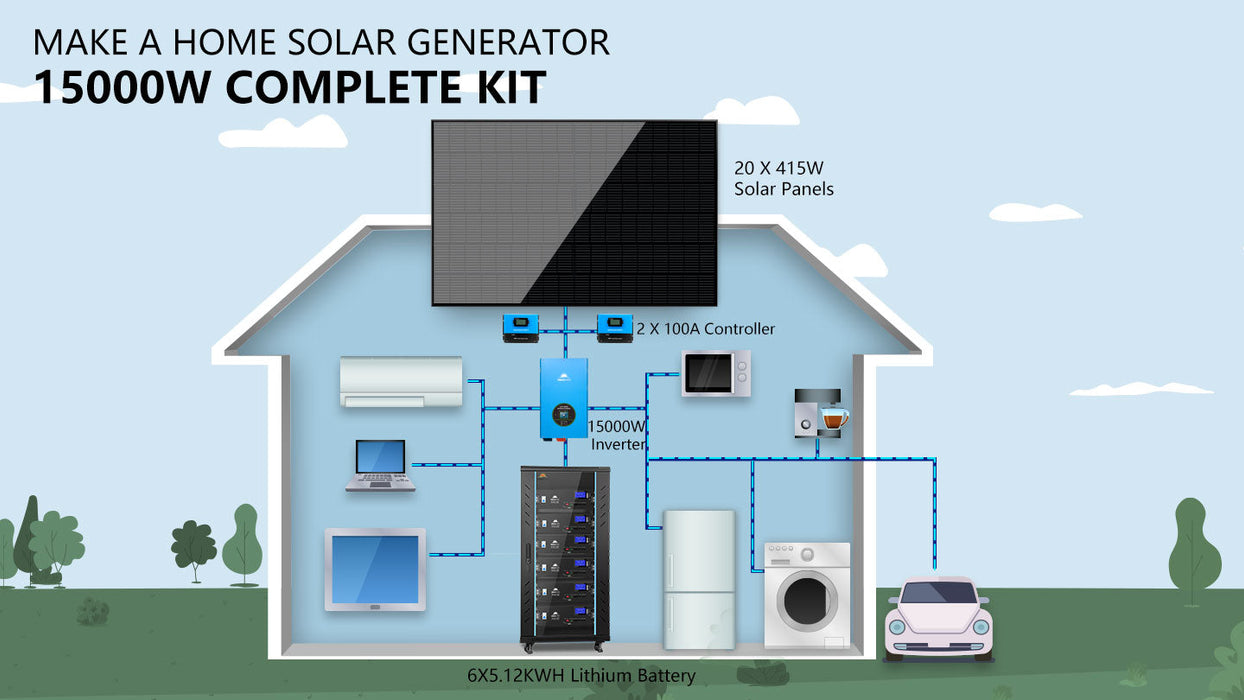

WHAT IS INCLUDED WITH THE COMPLETE SOLAR KIT
SGR-15K20E

1 x 15,000W 48V DC 120V/240V AC Output Inverter
Powerful inverter capable of handling high-energy loads and providing reliable off-grid power.

20 x 415W Monocrystalline Solar Panels
High-efficiency solar panels designed for optimal energy production.

6 x 100Ah 51.2V LiFePO4 Batteries (30.72KWh Total)
Long-lasting energy storage, perfect for keeping your home or business powered even during cloudy days.

2 x 100A MPPT Solar Charge Controllers
Efficiently manage and maximize energy capture from your solar panels.

1 x Enclosed Battery Cabinet for 6 x 100Ah 51.2V LiFePO4 Batteries
Secure and organized storage solution for your batteries.

2 x Sets of 50 Feet Solar Extension Cables (Inverter PV Input)
Cables designed to make connections between your solar panels and inverter simple and efficient.

2 x Sets of Cables Between Battery and MPPT Controller
Ensure smooth connectivity between your batteries and charge controller.

20 x Sets of Mounting Z-Brackets
Securely mount your solar panels for maximum sunlight exposure.

1 x 400A DC Breaker
Protects your system from overcurrent conditions.

2 x 50A PV Breakers
Provides additional protection for the solar panel wiring.

Sungold Power 15000W 48V Split Phase Pure Sine Wave Inverter Charger

LF-PV Series Pure Sine Wave Inverter is a combination of a 15000-watt inverter, AC charger, and Auto-transfer switch into one complete system.

The split-phase inverter requires 240VAC input and can provide 120VAC or 240VAC output power for all kinds of appliances, and it can output 50 or 60Hz via the SW4.

AC/Battery Priority: Our inverter is designed with AC priority by default, you can choose the battery priority by SW5 switch.

Water Proof

The solar junction box and solar connectors with an IP68 rating is completely protected from dust and will properly functional after Temporary immersion in water (up to 1m deep).

Snow and Wind Protection

Passed load test of 5400 Pa to withstand heavier snow load and 2400 Pa to withstand wind pressure.

Sungold Power 48V 100AH Server Rack LiFePO4 Lithium Battery

The SG48100P Lithium Battery is a high-performance energy storage solution, designed for seamless integration into your energy system. Compact and easy to install, this maintenance-free battery offers reliable performance for home, small commercial, and industrial applications. Its parallel installation capability allows you to easily expand capacity as your energy needs grow. Perfect for residential and commercial energy storage systems, the SG48100P provides efficient and scalable power storage with minimal upkeep.

Battery Character: The 51.2V 100AH LFP Battery is compact, well-designed, LCD, and cable/accessories ready for installation. ≥7000 cycles deep cycle & 10 years warranty, designed for up to 15-year life. UL1973.

Intelligent BMS: Battery Management System of the 48v server rack battery can manage and monitor cells information including voltage, current and temperature, protects it from overcharge, deep discharge, overloading, overheating and short circuit, help to extend lifetime.

Flexible: Modular design, easy to expand, max 32 units in parallel capacity of 163.84kwh, suitable to residential and commercial applications and other energy storage system for increasing the self-consumption ratio.

Compatible: CAN/RS485/RS232 Communication Protocol Lithium Ion Battery can be compatible with most inverters in the market, such as Growatt, Deye, SunGoldPower, Luxpower, Victron energy, Schneider, Phocos, SMK and so on.

Sungold Power 100 Amp MPPT Solar Charge Controller

Automatically detects 12V,24V, 36V and 48V DC system voltages

MPPT Tracking efficiency can be as much as 99.9%.

Support battery types: lithium batteries, sealed batteries, AGM Battery and self-definition.

With built-in over temperature protection and current -limited charging

Supports parallel function and breaks through the power limit of single unit.

With built-in Bluetooth module, it can achieve mobile phone APP data interaction.

LCD screen indicators for displaying system operation information, customizable parameters, and error codes.

100 Amp MPPT Solar Charge Controller

The SunGoldPower 100A MPPT Charge Controller is the most efficient type of charge controller. With up to 99.9% tracking efficiency, it ensures maximum power point solar charging that gets more energy to your battery bank. Auto-detecting 12V/24V/36V/48V different batteries system, Also you can view system performance in real-time with bluetooth!

Specifications

15000W 48V Split Phase Pure Sine Wave Inverter ChargerMain Features

*15KW split phase pure sine inverter charger DC 48V AC 240V input AC output 120V/240V
*Auto Generator Start (AGS)
*Include Battery Temperature Sensor (BTS) and Remote Control
*8 kinds of battery voltage selection ( lithium LiFePO4, gel, AGM and lead Acid batteries）
*Compatible With All kind of Home & Office Appliances
*Powerful Charge Rate Up to 100Amp, Selectable From 0%-100%
*Built-in transfer switch and battery charge, backup or off grid power solutions
*AC/Battery Priority Mode, Designates the Inverter-Preferred UPS Configuration
*4-step Intelligent Battery Charging, PFC (Power Factor Correction) for Charger
*8 ms Typical Transfer Time Between Utility & Battery,Ensure Power Continuity
*15s Delay Before Transfer when AC Recover, Protection for Load when Used with Generator

Main Specification：
Continuous Output Power :15.0KW
Surge Rating(20s) :45.0KW
Output Waveform :Pure Sine Wave
AC Output Voltage: 120V and 240V
AC Input Voltage:240V( not suitable for AC 120V input )
DC Battery Voltage:48Vdc
AC Battery charger:100±5Amp
Output Frequency :50Hz /60Hz
Typical transfer Time :10ms(Max)

DC Input:
Nominal Input Voltage :48.0Vdc
Minimum Start Voltage :40.0Vdc / 42.0Vdc
Low Battery Alarm :42.0Vdc / 44.0Vdc
Low Battery Trip :40.0Vdc / 42.0Vdc
High Voltage Alarm :64.0Vdc
Low Battery voltage recover :62.0Vdc
Power Saver on Idle Consumption: 45W
Power Saver off Idle Power: 225W

Charger :
Output Voltage: Depends on battery type
Battery Initial Voltage for Start Up: 40-62.8V
Over Charge Protection Shutdown :62.8V
Charger Breaker: 100A
Input Voltage Waveform :Sine wave (Grid or Generator)
AC input range:184-253Vac/140-270Vac
Nominal Input Frequency :50Hz or 60Hz (Auto detect)

Packaging:
15000W 48V Split Phase Pure Sine Wave Power Inverter
English Manual
Remote Control
BTS Cable
Unit Weight: 176.6 LB
Unit Size: 28.7x 16.5x 8 inch
Shipping Weight: 213 LB
Shipping Size: 34.25x 21.3x 16.2 inch

415 Watt Monocrystalline Solar Panels

48V 100AH Server Rack LiFePO4 Lithium Battery

100 Amp MPPT Solar Charge Controller
